One Gang 45 Degree Schuko Socket

Wenzhou Decoamigo Electric Co., Ltd. is one of the leading manufacturers and suppliers of one gang 45 degree schuko socket in China, also accepts customized order. With abundant experience, we warmly welcome you to wholesale CE approved one gang 45 degree schuko socket from our factory. For pricelist, contact us now.

One Gang 45 Degree Schuko Socket (F6-D1)



Product Name: One Gang 45 Degree Schuko Socket | Category: Modular Wiring Devices > Power and Switch Modules | Model: F6-D1



The F6-D1 packs a single Schuko outlet into a 45-degree angled module - the entry point of Decoamigo's D-series, aimed at installs where the cable needs to exit downward rather than straight out of the wall. Molded in PC and built to the CEE 7/4 Schuko profile common across continental Europe, it snaps into the same 45x45mm Type 45 frame used by the rest of the range, so a single faceplate can combine it with switches, USB modules, or data connectors. What sets the F6-D1 apart within its own 45-degree family is its screwless terminal: conductors push into place without a screwdriver, which is not how its close relative, the F6-D1S, is wired.

Angled modules like the F6-D1 are chosen for furniture-facing outlets, under-desk power points, or any location where a plug sitting flush and its cable trailing at 45 degrees looks tidier than a cable running straight out. The screwless terminal shortens on-site wiring time compared with screw-down alternatives, which matters on larger jobs with many single-gang points to land.

Rated 16A / 250V~, the F6-D1 measures 45 x 45mm. Surface options run to matte or glossy, in the standard RAL9003 and RAL9005 pair, with further RAL shades open to order above the minimum quantity threshold. Operating tolerance is -10C to +40C / 20%-90% RH, and storage extends to -20C to +85C / 10%-95% RH.

F6-D1 - view 1

F6-D1 - view 2

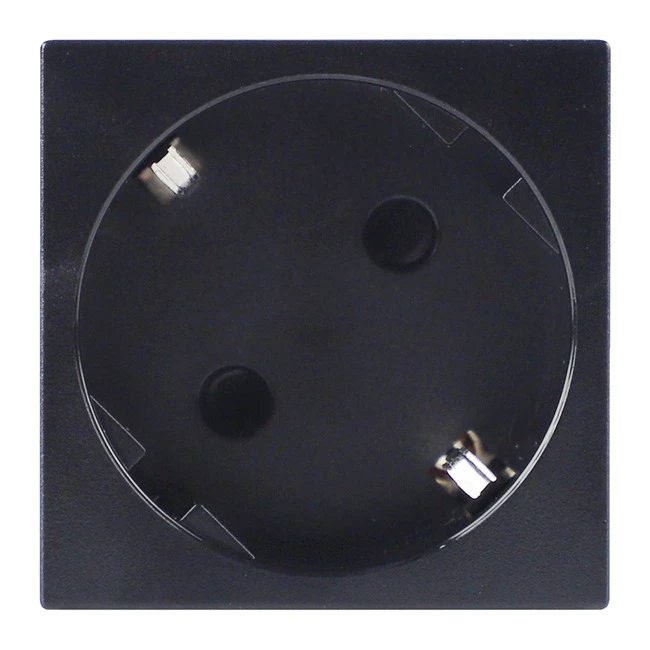

F6-D1 Schuko socket module, black, straight-on view

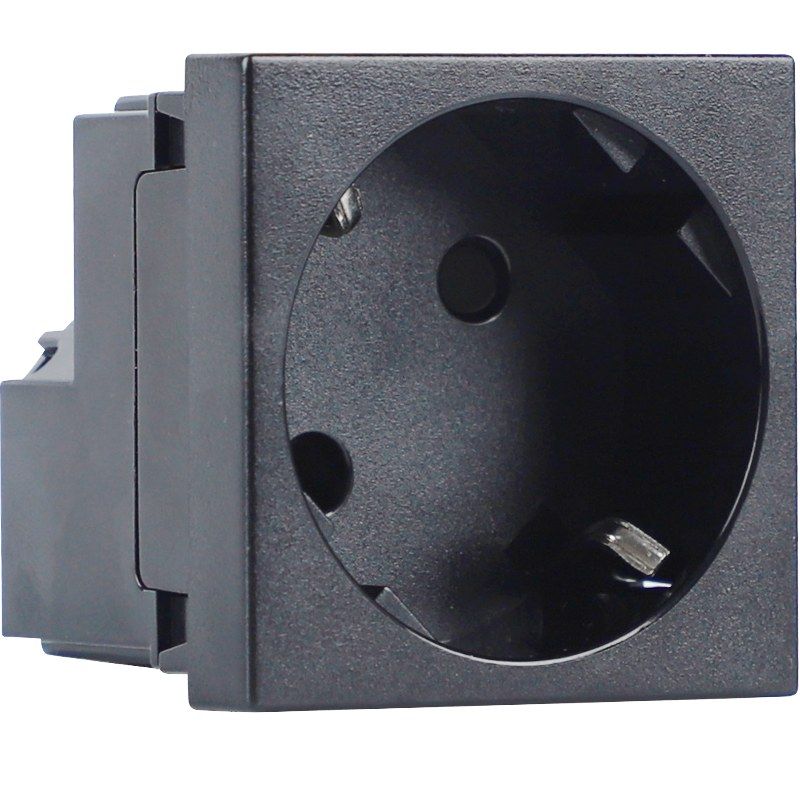

F6-D1 Schuko socket in black, angled to show the side module clips

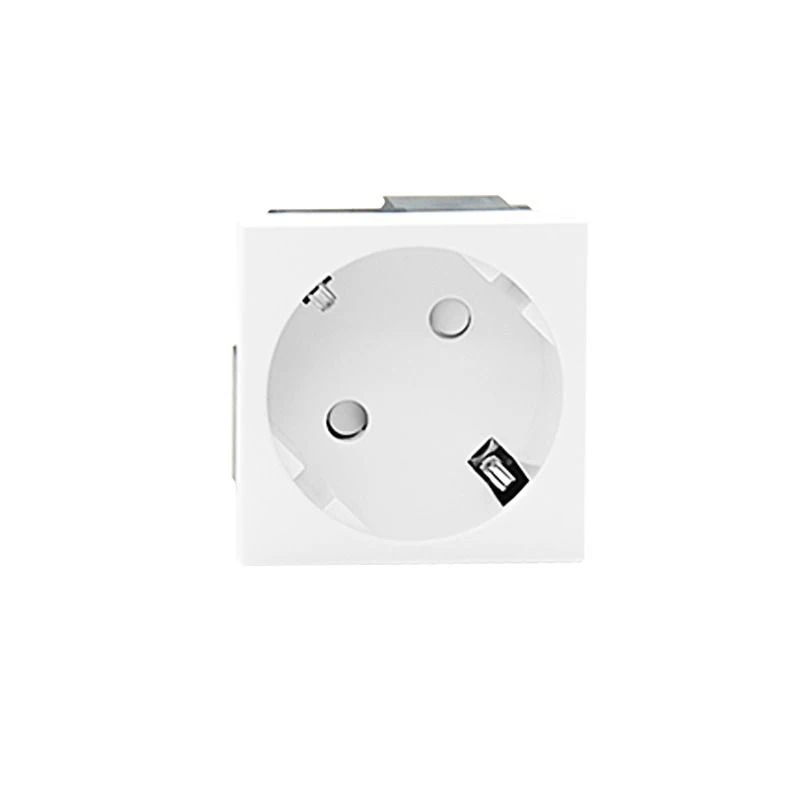

F6-D1 Schuko socket module in white, three-quarter angle

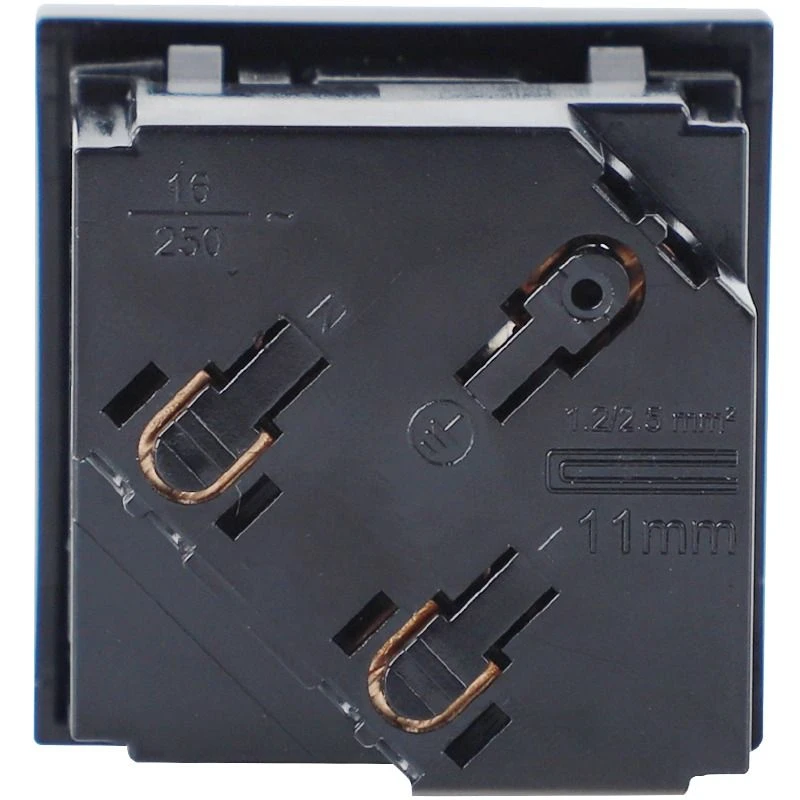

Rear view of the F6-D1 module showing terminal pins

Production batches of the F6-D1 are checked at the factory for terminal grip reliability and for a clean, square fit inside the standard Type 45 opening before they are released for packing.

Deliver, Shipping and Serving



The F6-D1 is normally shipped in bulk together with frames and other modules destined for the same faceplate; lead time depends on the color mix and order quantity and is confirmed by sales at order time. After delivery, the support team can advise on wiring the screwless terminals or on combining the F6-D1 with other Type 45 modules.
